Concrete Blocks for Retaining Walls: Specification, Load Ratings, and Installation Guide

05th August 2026

A retaining wall might look like a simple job of stacking blocks in a straight line, but it’s an engineered structure the moment it starts holding back soil. Get the wrong block, skip the drainage, or misjudge the load, and you’re looking at bulging or movement further down the line. Choosing concrete blocks for retaining walls properly means understanding how the block type, wall height, surcharge and soil conditions work together, not picking whatever’s on the yard shelf.

This guide covers what these blocks are, how to specify them correctly, and how to get the installation right first time. Let’s begin by defining what concrete blocks for retaining walls are.

What Are Concrete Blocks for Retaining Walls?

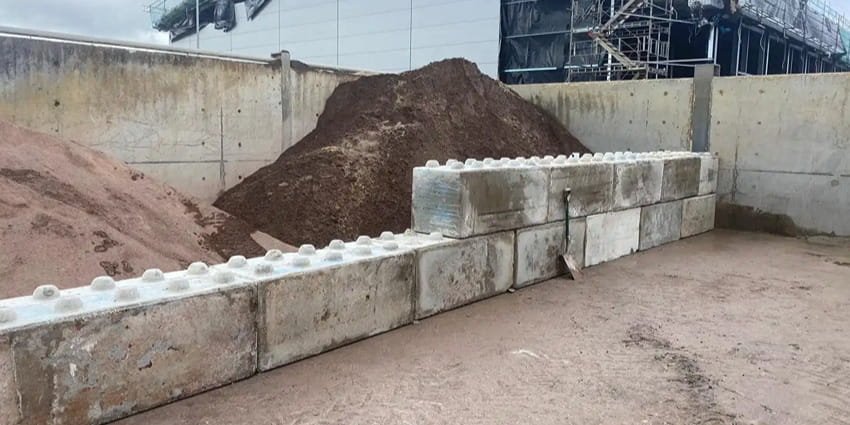

Not every block is built for the job. Purpose-made precast units designed to interlock and resist lateral soil pressure are a different product entirely to standard building blocks, and the difference matters once soil starts pushing back. Retaining systems built with interlocking concrete blocks are typically constructed with a setback or batter, a buried base course, and free-draining backfill behind them, all working together to keep the wall stable over time.

Broadly, there are two categories worth knowing. Smaller dry-stack landscaping blocks suit domestic gardens and low walls where the loads are modest and the stakes are lower. Larger engineered systems, built as a precast concrete block wall with reinforcement and design calculations behind them, are for taller or loaded walls, and these turn up more often on civil and commercial jobs where the consequences of getting it wrong are far greater.

Retaining Wall Block Specification: What to Check Before You Buy

Specifying concrete blocks for retaining walls properly means looking beyond price per unit. A few details make the real difference between a wall that lasts and one that doesn’t:

Material and Strength: Some specifications require ASTM C90 compliance and a minimum 3000 psi strength, while other systems specify around 15 MPa or higher.
Dimensions: Larger units give better stability but need heavier handling equipment.
Setback or Batter Angle: This determines how far the wall leans back into the slope.
Unit Weight: Heavier blocks are harder to place by hand, affecting programme and cost.
Interlock Profile: Any proprietary lip or key detail needs checking against manufacturer guidance.
Cap units and drainage: Confirm matching components and backfill at the retaining wall block specification stage, not on site.

Getting these details right before a unit goes in the ground is what makes for reliable concrete block wall construction.

Understanding Load Ratings and Design Loads

It’s tempting to assume a block’s compressive strength tells you how much a wall can hold. It doesn’t. Load rating for concrete retaining wall blocks depends on the whole system: the height of retained ground, surcharge loads from driveways or sloping ground above, soil type, wall batter and reinforcement, and whether the wall is freestanding, domestic, or fully engineered.

Retaining wall surcharge loads in the UK are site-specific and should be checked against the relevant Eurocode-based design standards, with the UK National Annex where applicable. In practice, the load a wall must resist depends on the retained height, soil conditions, drainage, and any additional actions behind the wall, such as foot traffic, vehicle access, or nearby structures. As a rule, if the wall supports a driveway, a slope, or any significant imposed load, it should be treated as an engineered retaining wall rather than a simple DIY garden feature.

Concrete Block Wall Construction: Step-by-Step Installation

Good concrete blocks for retaining walls installation follows a consistent sequence, and skipping steps is where problems start:

Set Out the Wall Line: Mark the run and excavate to the required trench width and depth.
Prepare the Foundation: Compact a granular base, since a soft footing undermines everything built above it.
Lay the First Course Level: This is the most critical step in any interlocking concrete blocks installation, and it must be well-compacted and partially buried.
Stack with Staggered Joints: Offsetting vertical joints in a running bond pattern spreads load evenly.
Add Drainage Aggregate: Include perforated drainage pipe where needed.
Backfill in Layers: Working in stages avoids overloading the wall before it settles.
Finish with Coping: This completes the concrete block wall construction.

Rushing the first course is the most common mistake, and usually the one that causes problems years later.

Retaining Wall Drainage and Backfill: Getting It Right

Drainage failures cause more retaining wall problems than almost anything else. Water pressure building up behind a wall can be just as damaging as soil pressure, and poor drainage is a leading cause of bulging, movement and eventual collapse. Most guidance recommends free-draining aggregate directly behind a precast concrete block wall, keeping clay and topsoil well away from the drainage zone.

For taller walls, or anywhere water pressure could build up over time, a perforated drainage pipe behind the base course gives water somewhere to go rather than pushing against the blocks. Geotextile fabric is often used alongside this, keeping fine soil particles from migrating into the drainage zone and clogging it over time. Getting retaining wall drainage right at the design stage costs far less than fixing a failed wall later.

Choosing the Right Wall for Your Project

Not every job calls for concrete blocks for retaining walls and knowing when to look elsewhere matters. Timber walls suit lower, less exposed sites with a shorter design life. Gabion walls handle drainage naturally on variable ground. Poured concrete suits taller, heavily loaded walls needing a monolithic structure.

For most low garden walls, a domestic block system will do. Once you’re retaining a driveway or building near a boundary, you’re in engineered territory, and taller walls may need planning permission depending on height. Once built, keep drainage outlets clear and check for movement after heavy rain, particularly in the first year.

Always follow the manufacturer’s technical data and use a qualified engineer where the wall retains significant height, supports a surcharge, or sits near a boundary. Remember that performance depends on the whole system, not the block specification alone.
